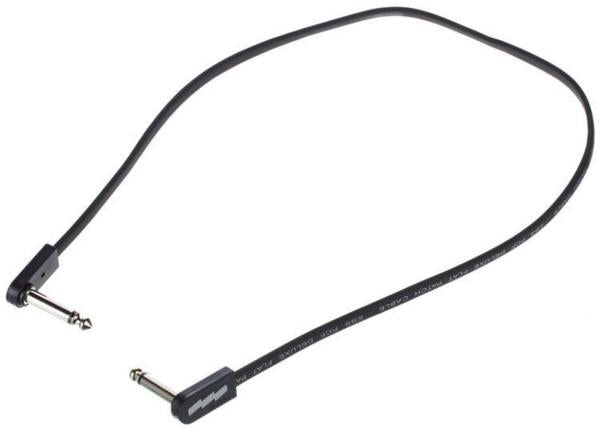

- EBS PCF-DL58 Deluxe Flat Patch Cable
- SKU MEB PCF-DL58
- Flat Patch Cable
- 58 cm
- Copper Conductors
- Super Compact Angled Contacts
- Extremely Well Double Shielded
- Low Resistance

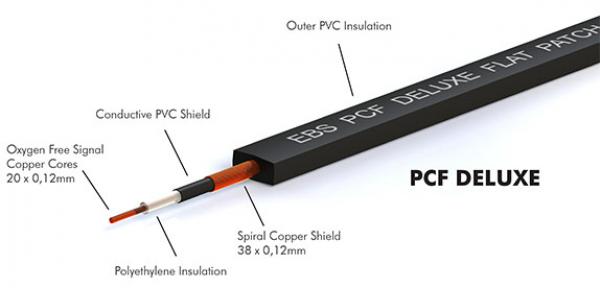

- Conductor: Flexible copper conductor low voltage -audio signal system
- Operating Temperature: -15ºC to +70°C
- Outer Insulation: PVC (Polyvinyl Chloride)
- Signal Copper Cores: 20 x 0,12mm
- Signal Insulation: PE (polyethylene)
- Copper Twisted Shield: 38 x 0,12mm
- Capacitance Cond./Shield: < 10 pF/decimeters
- Conductor Resistance: < 10 mOhm/decimeters
- Dimensions: 6 x 3 mm (rectangular cable)
- 30,0 x 13,0 x 6,0 mm (contact house)
- Connectors : ¼” 90 degrees angled audio plug
