Vídeo:

·Procesamiento: 4:4:4 (Y/Pb/Pr, RGB) /10 bits // 4:2:2 (Y/Pb/Pr) /10 bits

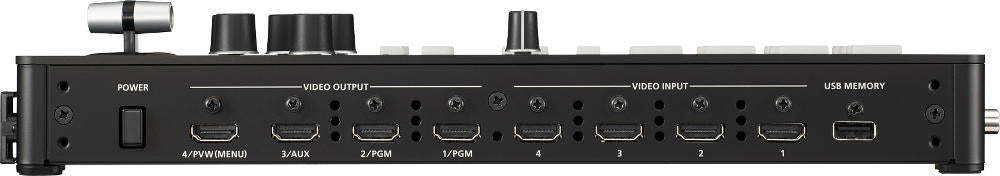

·Conexiones de entrada: HDMI : HDMI type A x 4 (HDMI INPUT 1--4) *soporta HDCP
·Conexiones de salida: HDMI : HDMI type A x 4 (HDMI OUTPUT 1--4) * soporta HDCP
·Formatos: 480/59.94i (*1), 576/50i (*1), 480/59.94p (*1), 576/50p (*1), 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, 800 x 600/60 (*1)(*2), 1024 x 768/60 (*2), 1280 x 720/60 (*2), 1280 x 800/60 (*2), 1366 x 768/60 (*2), 1280 x 1024/60 (*2), 1400 x 1050/60 (*2), 1600 x 1200/60, 1920 x 1080/60, 1920 x 1200/60 RB
·Efectos: Output Mode : Switcher, Split, Matrix Transition : Mix, Cut (*3) Composition (Keyer) : 2 (*3)
·Imagen fija: Internal Memory : 1 / Tamaño máximo : 1920 x 1200 pixels Formato : Windows Bitmap File (.bmp) 24 bit per pixel, uncompressed

Audio:

·24 bits/48 kHz

Peso: 1.2 kg
